Key Features

  • Extra Wide Washable Width
  • Stainless Steel Front Facia

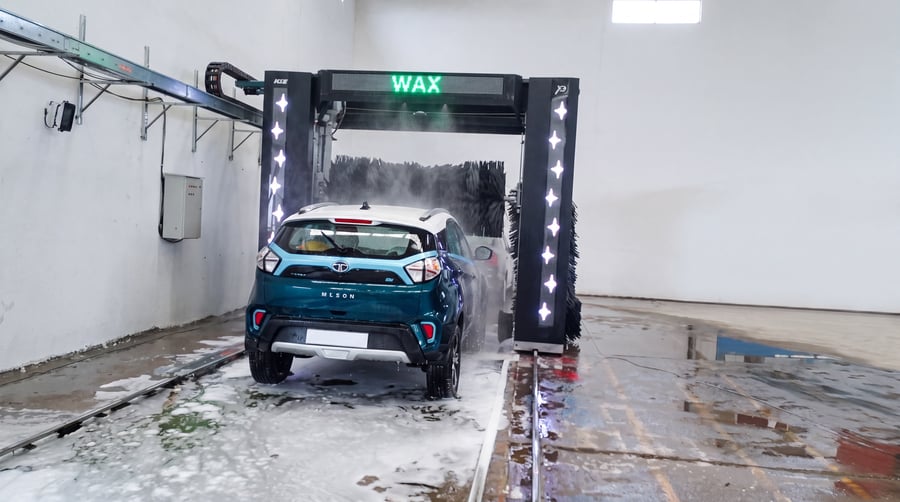

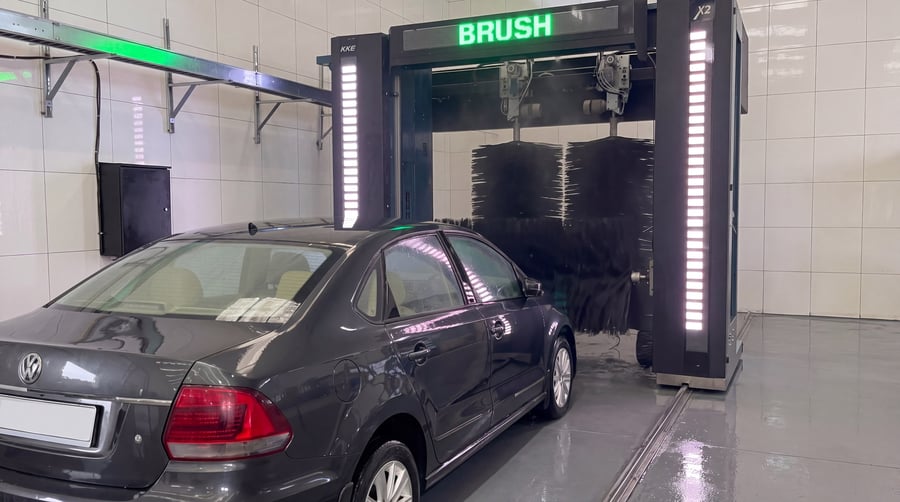

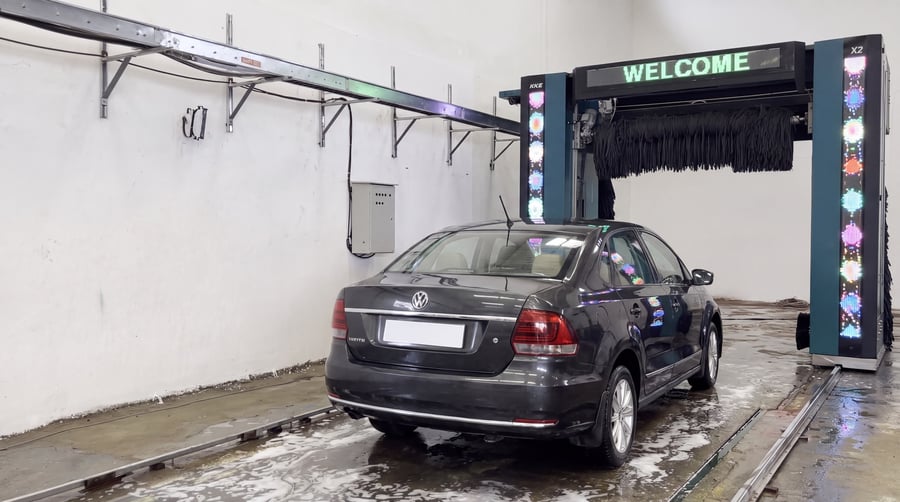

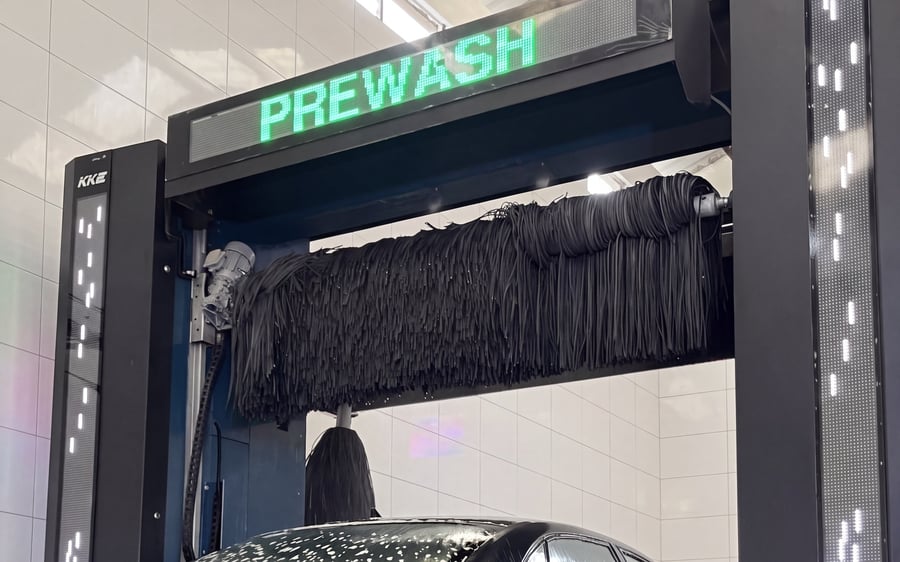

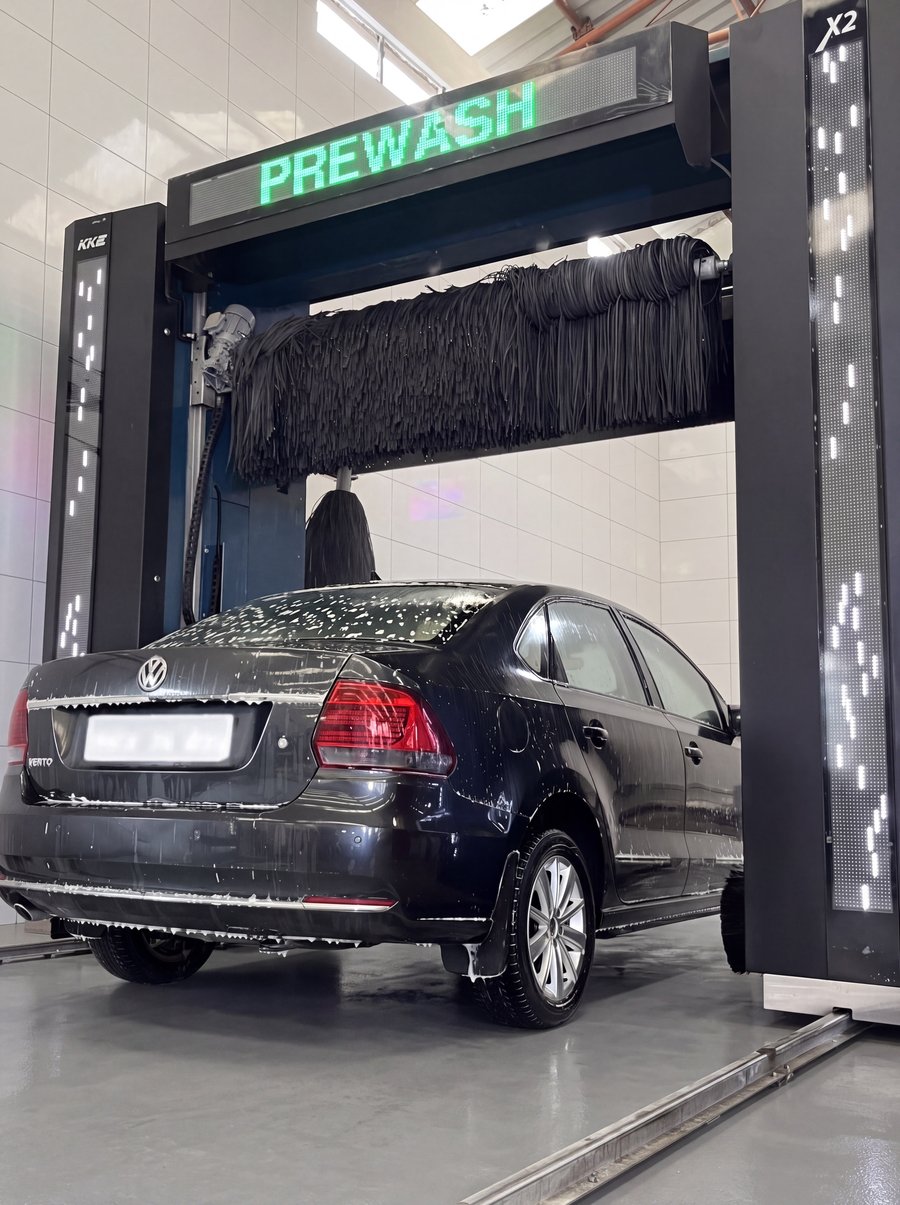

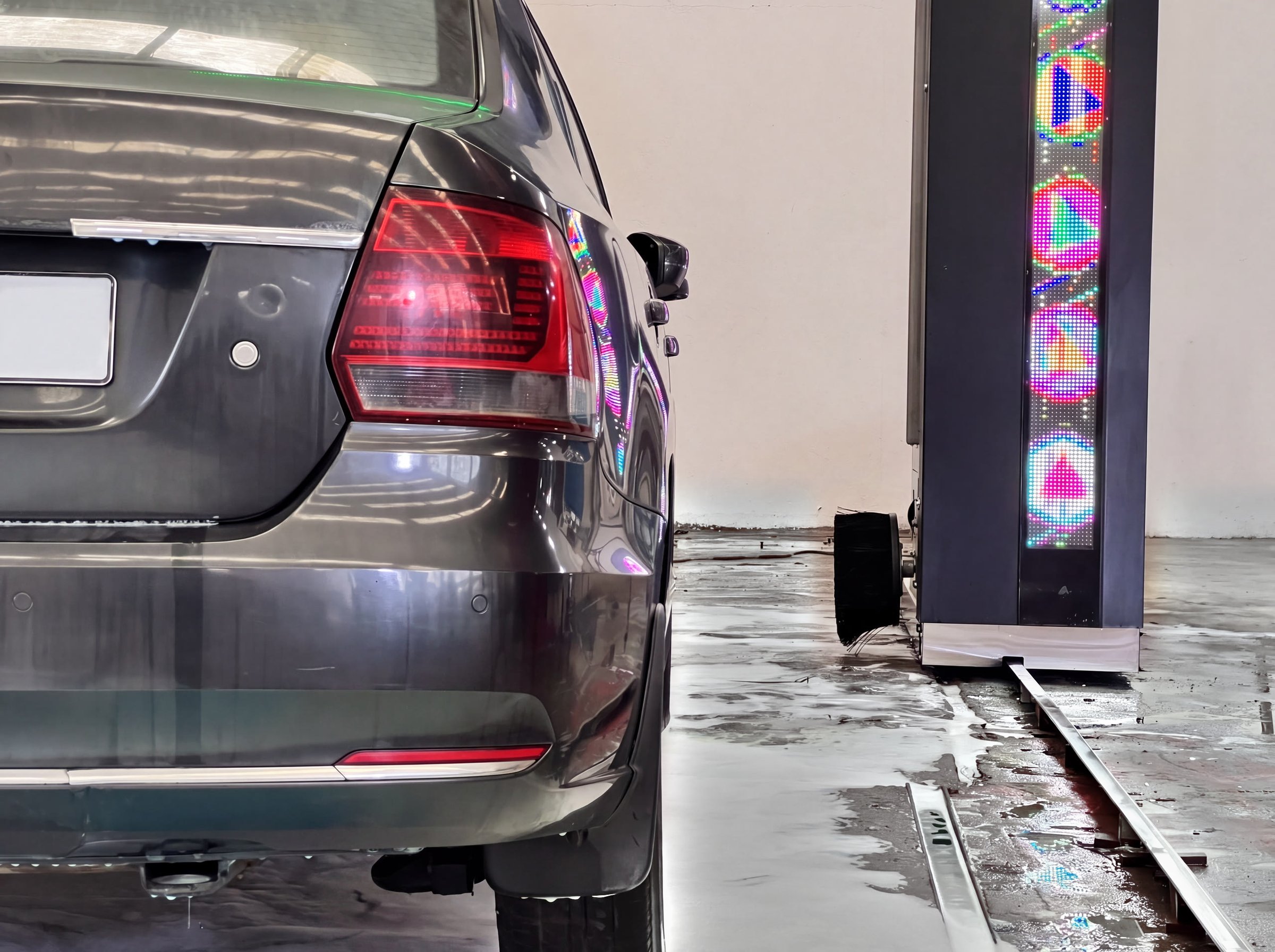

  • Attractive LED Display
  • Pneumatic Tilting Brushes
  • Belt System for Vertical Brushes
  • Precision Brush Control with Power and Current Monitoring
  • Ultra Low profile. Just 10mm from the floor surface.

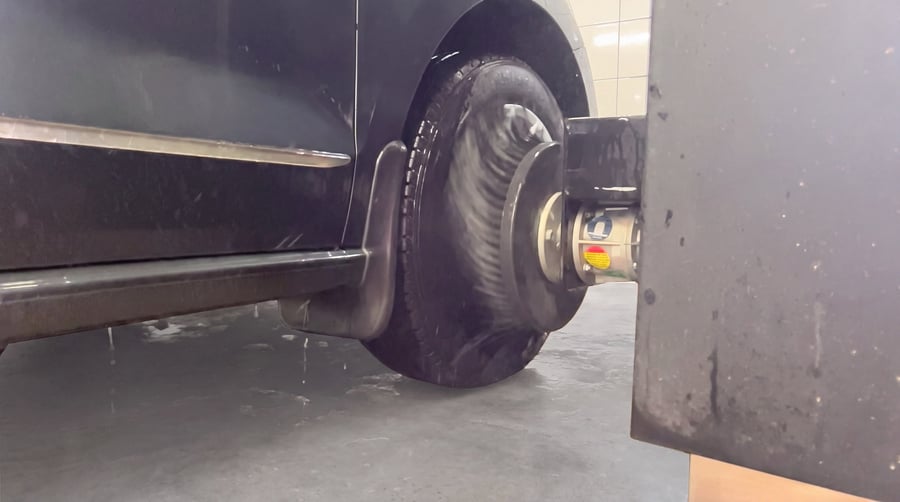

  • Advanced Wheel Wash Slider System

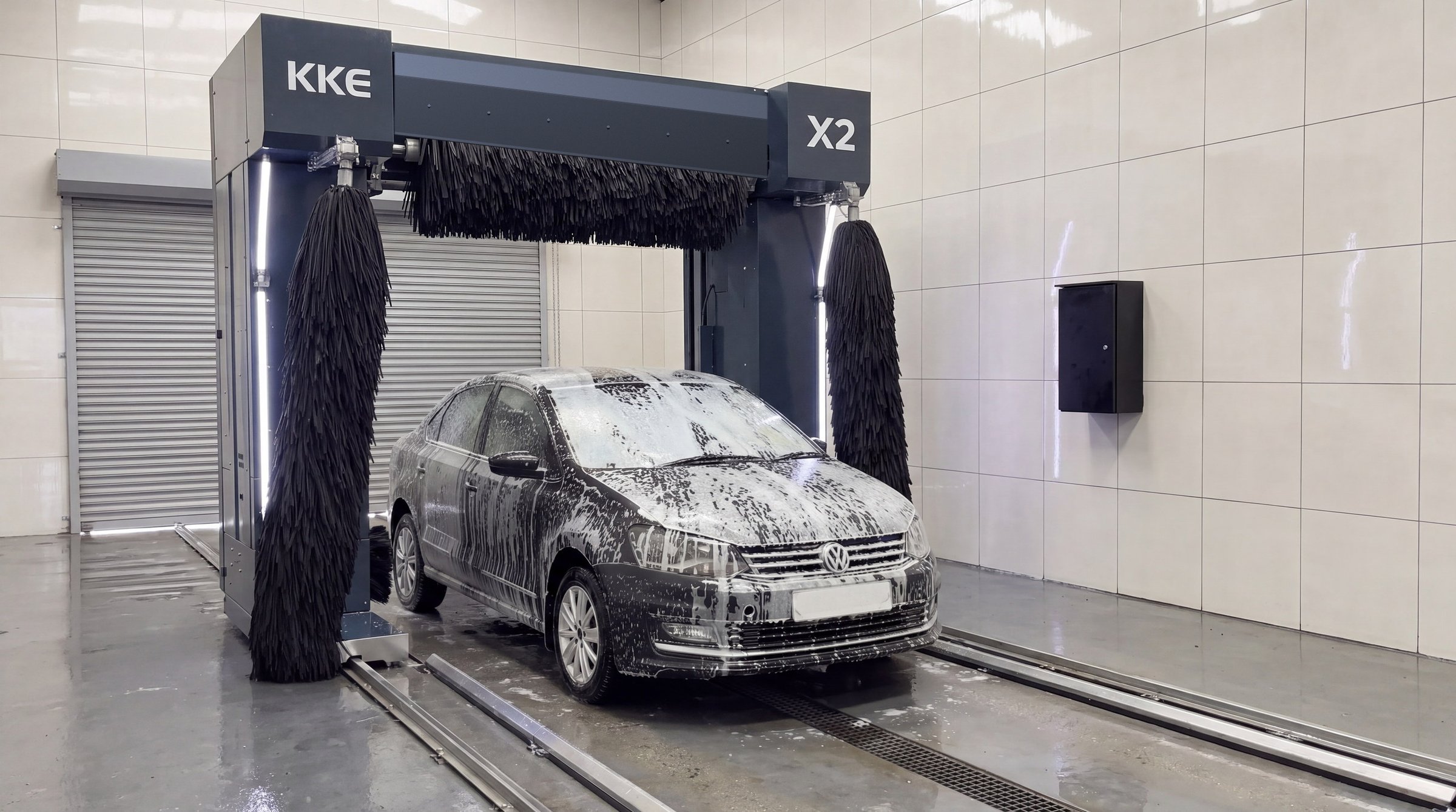

  • Snow Foam System

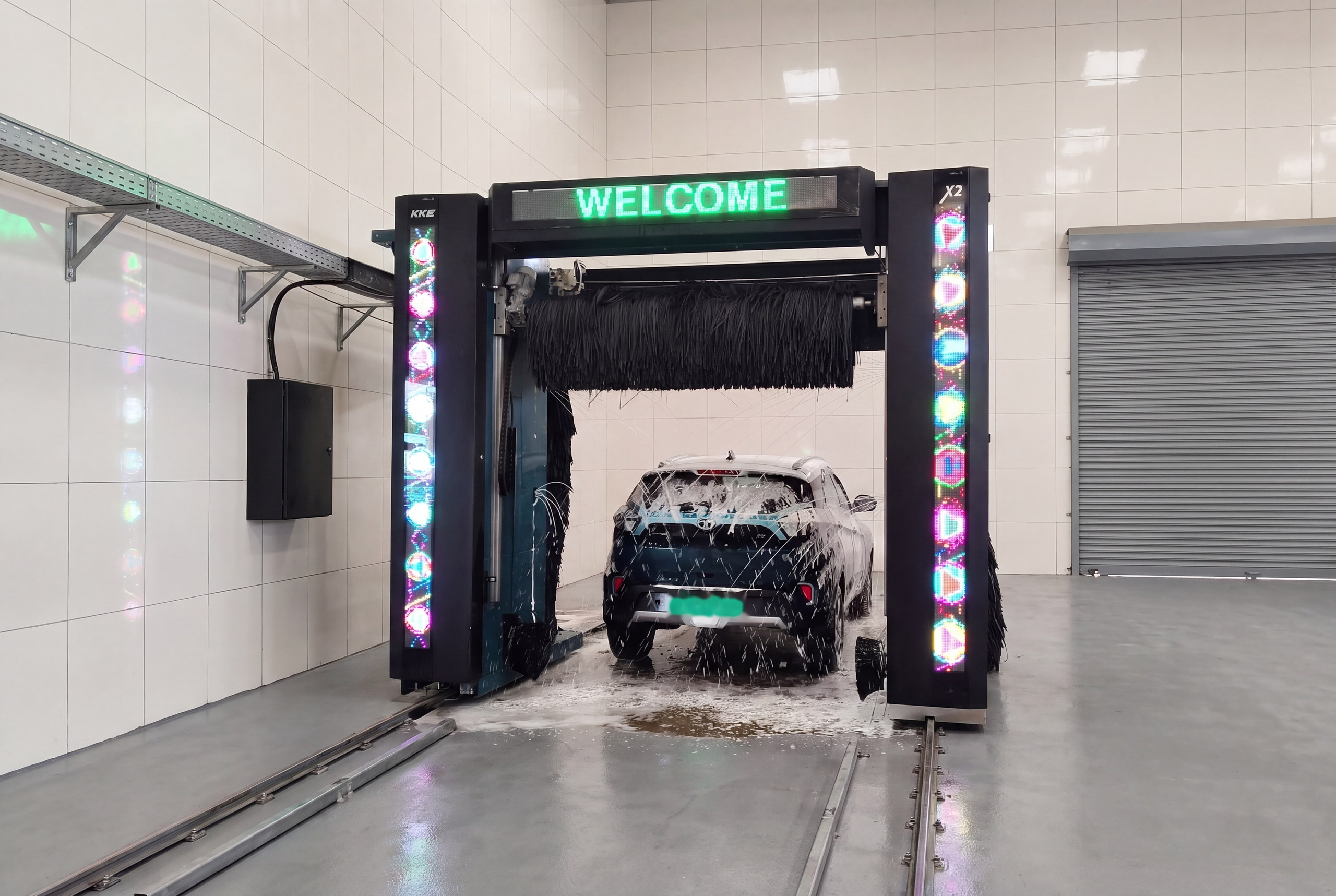

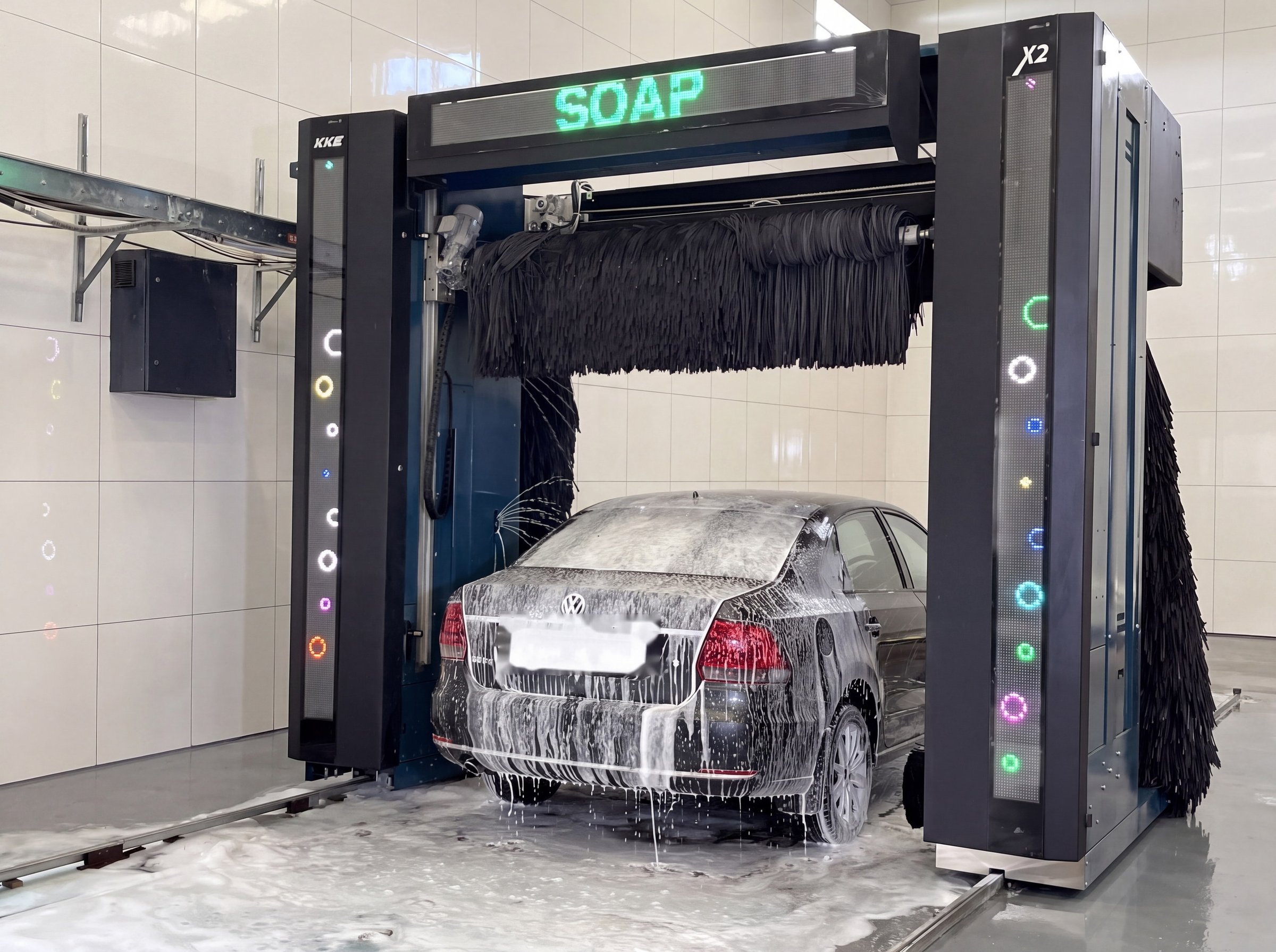

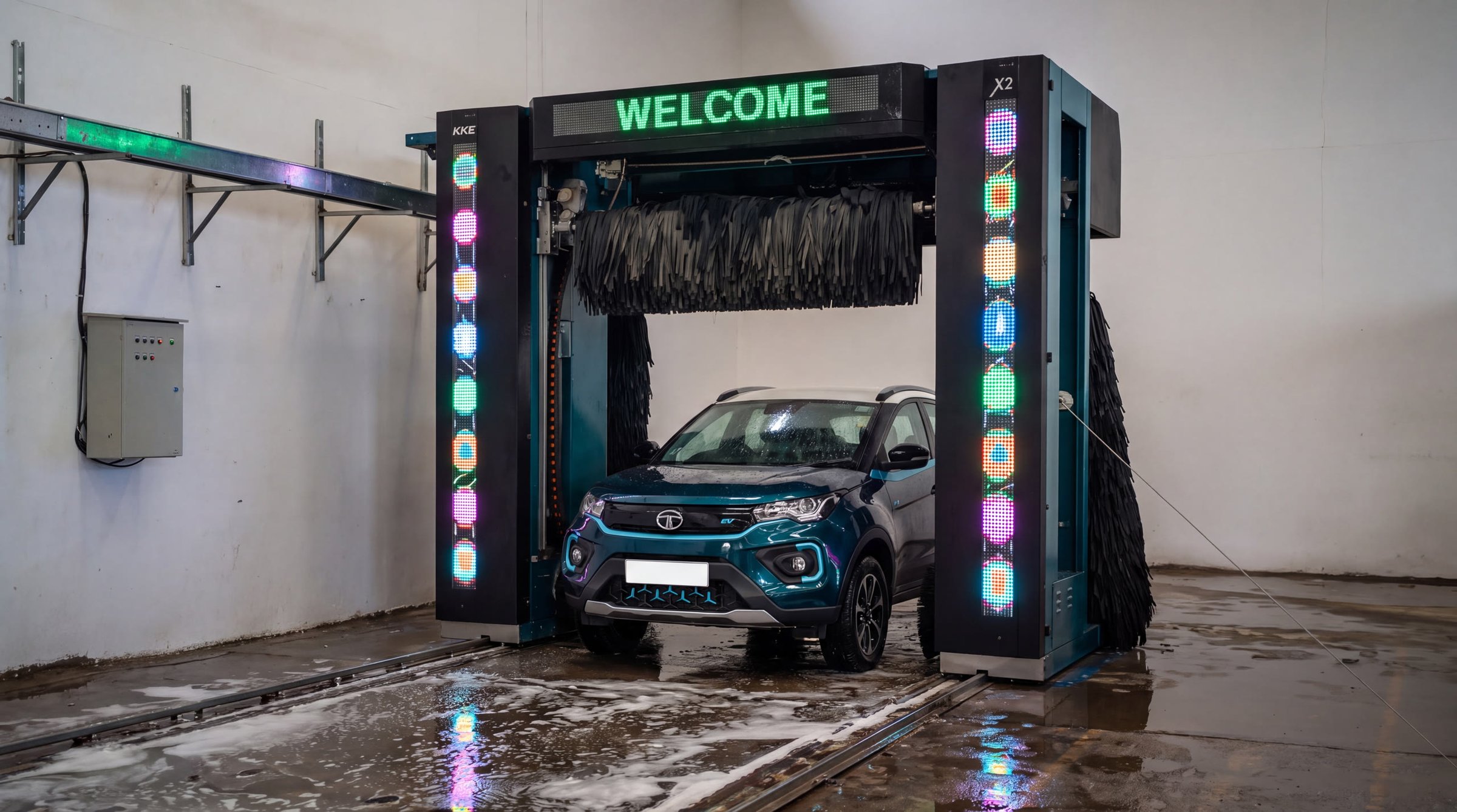

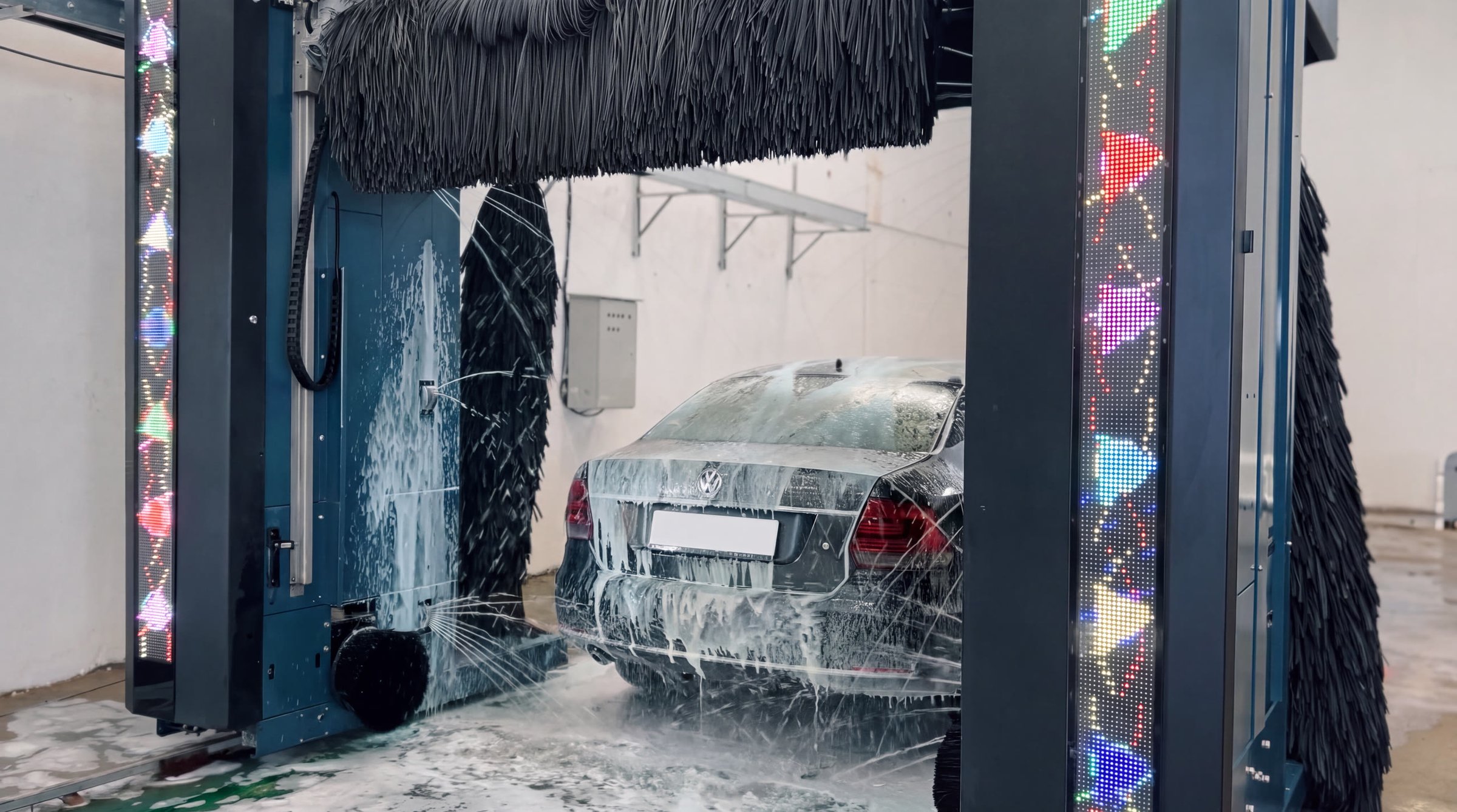

X2 is an Advanced Automatic Car Wash Machine with many advanced features in built into it. The system comes with 3 brushes with individual Brush Pressure Sensing. With the two Wheel Brushes fitted already, the system becomes a 5 Brush system. The Front Facia with LEDs helps in attracting the customers. The System can be upgraded with Lava Foam, Sealer Wax, Triple foam wax, Bug Spray, Mirror Spray System etc.



Standard Features

  • Trolley made of Laser cut, precision Galvanised Steel
  • Floor Mounted Trolley
  • Structure Body painted with High Gloss Automotive Paint
  • Stainless Steel Facia
  • Energy Chain System
  • Space Saving Trolley Design
  • Semi-Assembled System for quick installation
  • Throughput of 9-12 cars per hour
  • PLC Controlled Automatic System

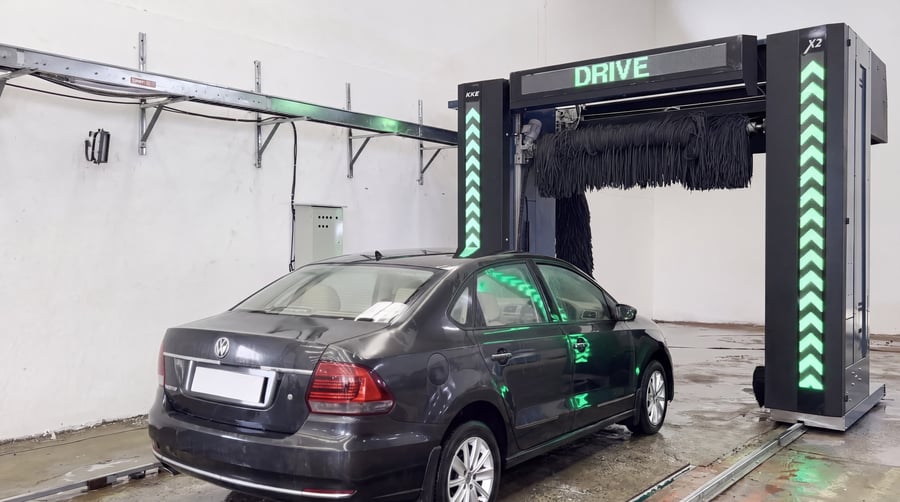

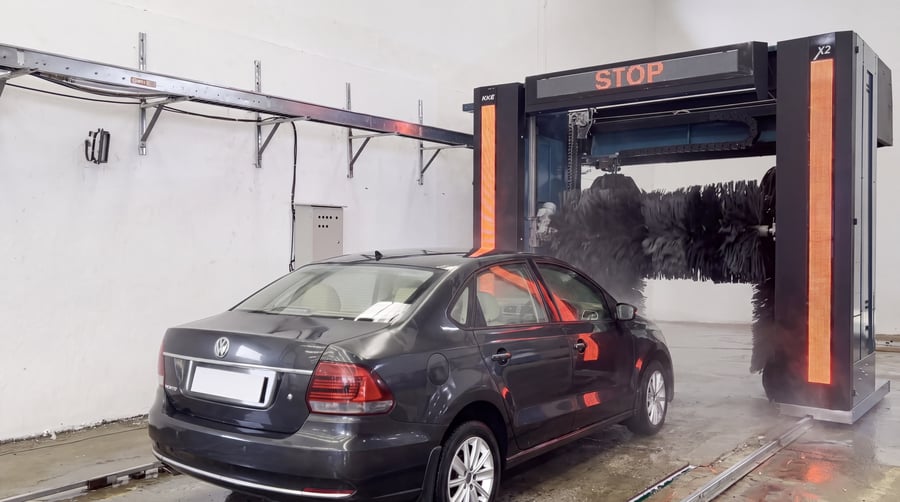

  • Vehicle Positioning System
  • Very sensitive Control system for the safety of the vehicle
  • VFD Controlled Trolley Drive
  • VFD Controlled Horizontal Brush and Contour Following Blowers
  • Power and Current Sensing Vertical and Roof Brushes
  • High Penetration IP67 Sensors
  • Up to 12 Wash Programs
  • Touch Screen Operating Panel
  • Onboard Control Panel
  • Manual Mode for snag diagnostics included
  • Pickup program for washing pickups

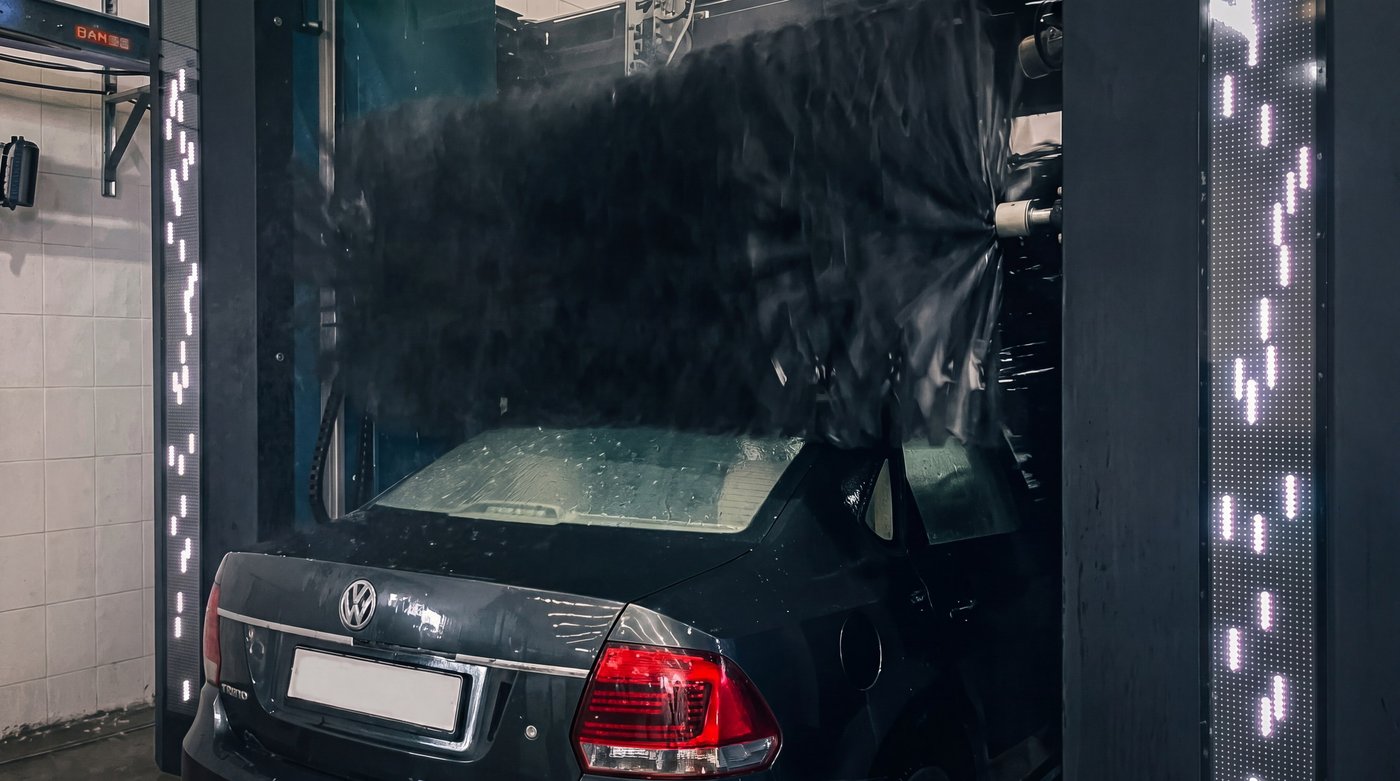

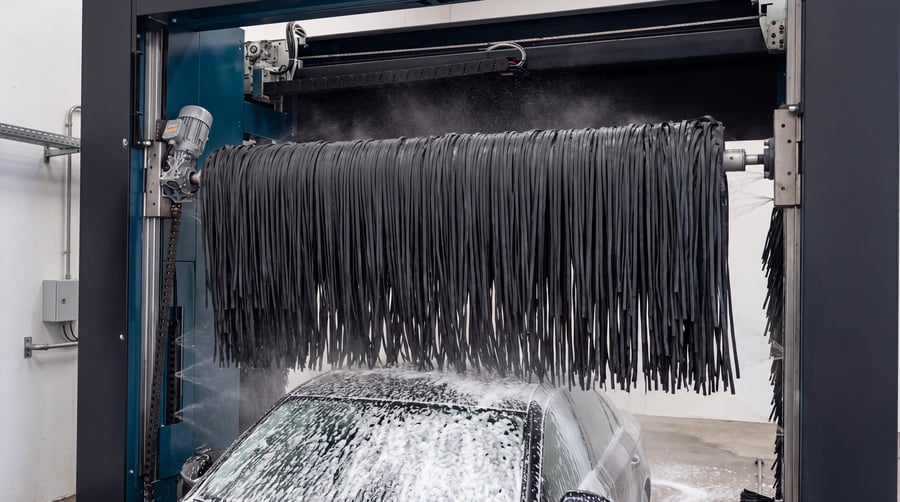

  • Contour Following Top and Vertical Brushes
  • Rust Free PPE Nozzles
  • Rust Free PPE Piping
  • Inbuilt Snow Foam System
  • Wheel Wash System system with advanced slider system
  • High Quality PE bristle Brushes ( Default Option )

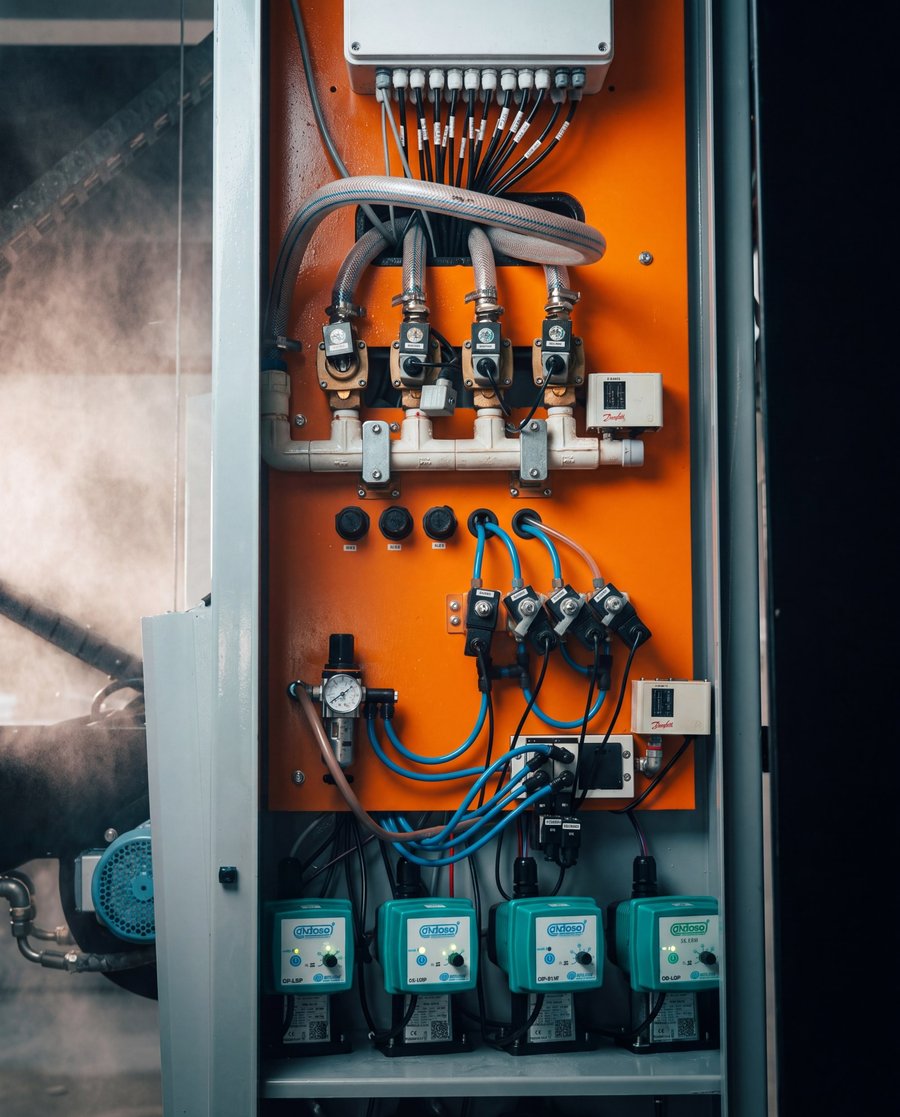

  • Chemical Dosing Pumps (Supports most car wash chemicals)
  • Easy to Operate
  • Easy to Understand and Maintain
  • Standard parts and components used (available anywhere in the world)


Technical Data


Washable Dimensions
Length 5.8 m
Width 2.1 m
Height 2.3 m
Recommended Bay Dimensions
Length 11 m
Width 5 m
Height 4 m
Standard Bay Dimensions
Length 10.5 m
Width 4.2 m
Height 3.4 m
General Details
Rail Length 10 m
Rail Spacing 2.855 m
Weight 1200-2000 kg
Electricity Supply
No. of Phases 3, 3
Voltage 415 V, 208 V
Frequency 50 Hz, 60 Hz
Connected Load 2.62 hp
Water Supply
Volume 60 lpm
Pressure 3 bar
Air Supply
Pressure 6-8 bar
Standard Wash Cycles
Low Pressure Prewash Yes
High Pressure Prewash Optional
Bug Spray Optional
Mirror Spray Optional
Foaming Soap Spray Yes
Tire Spray Yes
Low pH /High pH Soap Systems Optional

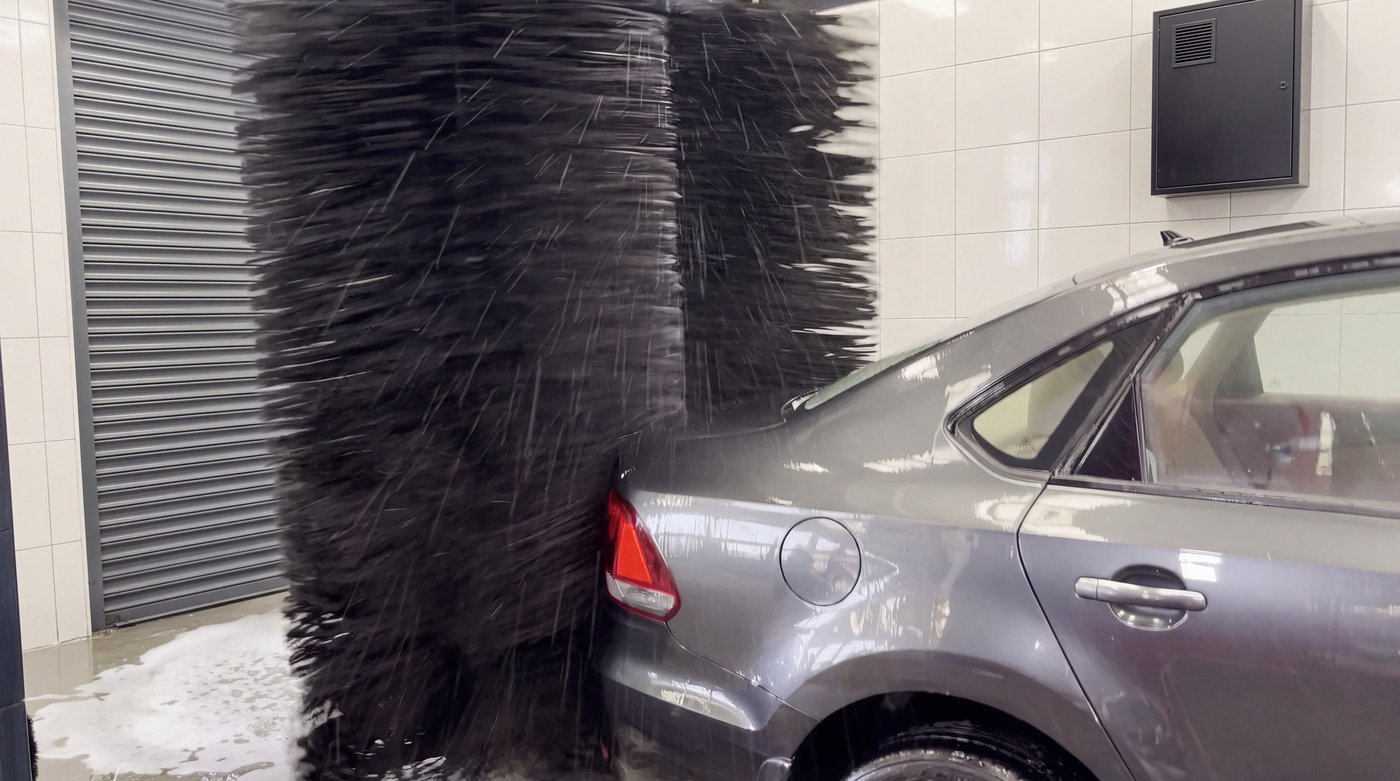

Vertical Brush Systems with Pneumatic Tilting Yes
Vetical Brush Pressure Sensing Power Monitoring System
Horizontal Brush Pressure Sensing Power Monitoring System
Brush Material Soft Foam
Pickup Vehicle Program Yes
Wheel Blaster Yes
Wheel Brush Yes
High Pressure in Wheel Brush Optional
Triple Foam Wax Optional
Sealer Wax Yes
Drying Agent Spray Optional
Spot Free Rinse Optional
Contour Following Blower 16hp Optional
Technical Data
Control Panel Onboard
Energy System Addons : Stanchion / Energy Chain
Vehicle Positioning System Yes
PLC Mitsubishi
LED Lights Yes
Remote Access Optional
Switch Gear MPCB
Sensors Pepperal Fuchs, Telco, Omron
Equipment Control 7" Touch Screen Panel
Color Optional
Gate Control Yes
No. of Wash Programs 5
