Automatic Truck Wash - Overview

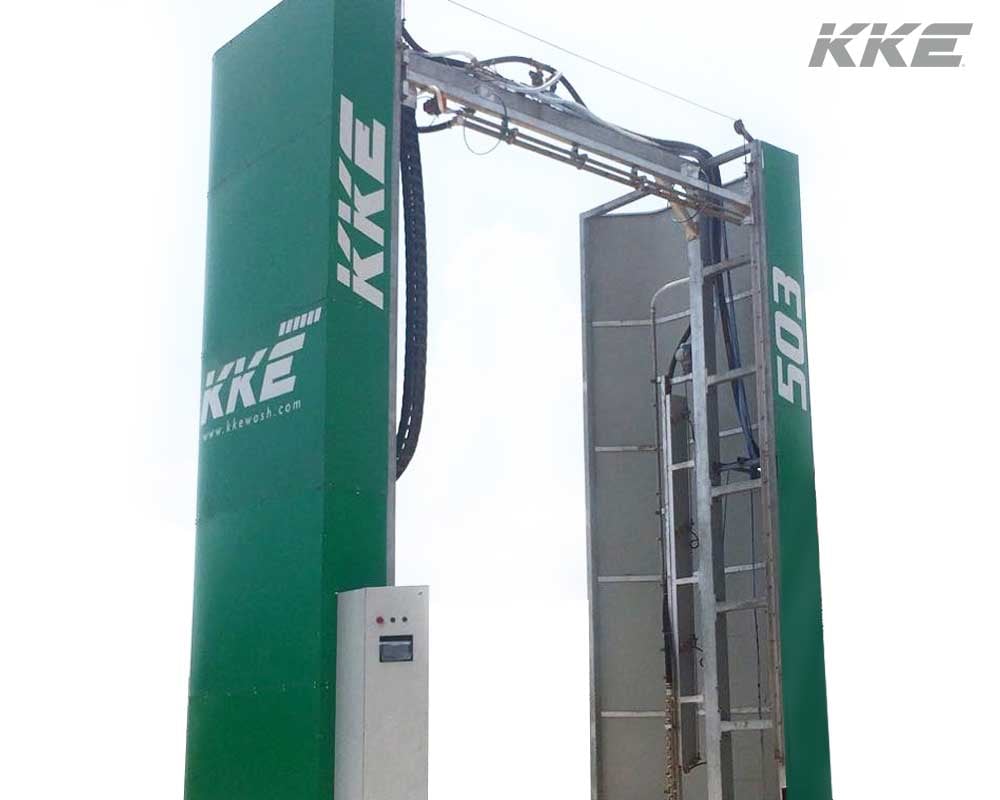

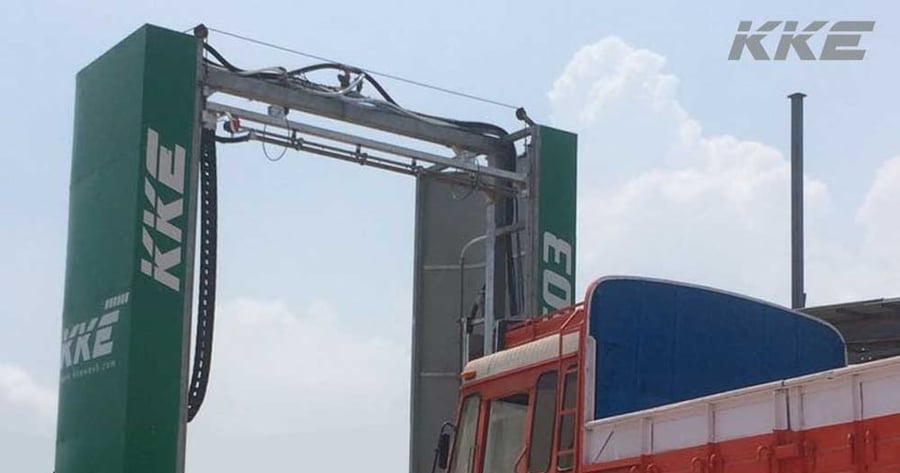

KKE 503 is an Automatic Truck Wash System using High-Pressure Technology. High-Pressure Truck wash systems are suitable for fleets where the shapes are irregular and brushes cannot reach places to be cleaned.

KKE 503 has high-pressure nozzles that oscillate at a high frequency to achieve better cleaning results. The nozzles used are 0-degree nozzles which have better cleaning ability compared to the V jet nozzles.

The contour following nozzles follows the contour of the vehicle. The length of the system can be increased to wash trucks up to 23 m long and even further with confirmation from KKE.





Standard Features

  • Floor Mounted Trolley
  • Energy Chain System
  • Structure Body painted with High Gloss Automotive Paint
  • Anti Tilt and Anti Derailing Mechanism
  • Space Saving Trolley Design
  • Semi-Assembled System for quick installation
  • Trolley Speed of 10 - 15 m/min
  • PLC Controlled Automatic System
  • Very sensitive Control system for the safety of the vehicle
  • VFD Controlled Drive, Horizontal Nozzles
  • High Penetration IP67 Sensors
  • Touch Screen Operation
  • Onboard Control Panel
  • Automatic / Manual Model
  • Contour Following Top Nozzles
  • Stainless Steel Nozzles
  • Stainless Steel Piping
  • Soap System
  •  Chemical Dosing Pumps (Supports most chemicals)
  • Easy to Operate
  • Easy to Understand and Maintain
  • Standard parts and components used (available anywhere in the world)



Truck Wash Pumps

KKE 503 Truck Wash Equipment provides an option to use a pump system as per your requirements. We prefer using centrifugal pumps due to their long life and low maintenance but can offer Triplex Pumps on request.

The standard pump system available are :

  • 20 bar (290 psi)
  • 40 bar (580 psi)

We also customise the pump system depending upon the requirements of the client.



Technical Data

Washable Dimensions
Length 12.5-28 m
Width 27 m
Height 3.7 m, 4.3 m, 4.6 m, 5.1 m
Recommended Bay Dimensions
Length 16.5 m
Width 6 m
Height 6 m
Standard Bay Dimensions
General Details
Rail Length 3 m
Rail Spacing 415 m
Weight 50 kg
Electricity Supply
No. of Phases 3
Voltage 415 V
Frequency 50 Hz
Water Supply
Volume 500-1000 lpm
Air Supply
Pressure 7 bar



Optional Addons

  • Truck Wash Side Blasters
