Key Features

  • Pneumatically Sensing Vertical Brushes
  • Best Equipment for vehicles with Flat Sides
  • Multiple Wash Programs



Overview

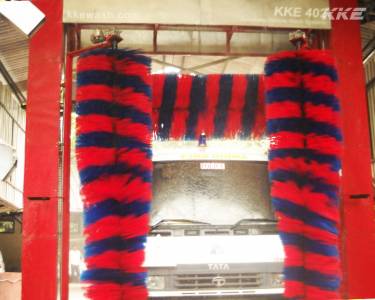

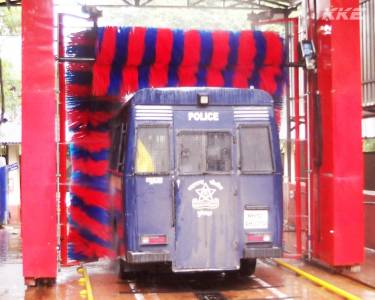

KKE 403 is an entry level Bus/Truck Wash Equipment. The basic wash equipment comes with two vertical brushes only. The Roof brush is an optional addon. Many fleet owners have luggage carriers on the roof and do not want the roof brush. The roof of the bus gets cleaned by the water nozzles.

The vertical brushes are hinged on the sides and the pressure of the brush on the vehicle is sensed pneumatically. The air pressure in the cylinders can be regulated to change the pressure of the brush on the vehicle.

This is also a good equipment for fleets with plain vertical surfaces like buses, container trucks, closed trucks, PVC covering trucks.





Standard Features

  • Floor Mounted Trolley (Roll Over System)
  • Hot Dip Galvanised Structure
  • Anti Tilt and Anti Derailing Mechanism
  • Space Saving Trolley Design
  • Semi-Assembled System for quick installation
  • PLC Controlled Automatic System
  • Very sensitive Control system for safety of the vehicle
  • VFD Controlled Drive, Horizontal Brush and Contour Following Blowers
  • High Penetration IP67 Sensors
  • Onboard Control Panel
  • Automatic / Manual Mode
  • Contour Following Top and Vertical Brushes
  • PPE Nozzles
  • PVC Piping
  • Soap System
  • High Quality PE bristle Brushes
  • Easy to Operate
  • Easy to Understand and Maintain
  • Standard parts and components used (available anywhere in the world)



Technical Data

Washable Dimensions
Length 12.5 m
Width 2.7 m
Height 3.5 m, 4.1 m, 4.6 m, 5.1 m
Recommended Bay Dimensions
Standard Bay Dimensions
Length 18 m
Width 6.5 m
Height 5 m
General Details
Rail Length 16.5 m
Rail Spacing 4800 m
Weight 2000 kg
Electricity Supply
No. of Phases 3
Voltage 208 V, 208 V, 60 V
Frequency 50 Hz, 60 Hz
Water Supply
Volume 100 lpm
Pressure 2 bar
Air Supply
Pressure 7 bar
Standard Wash Cycles
Technical Data



Optional Addons

  • Sealer - Silicon Wax System
  • Entry Point Under Chassis Wash Equipment
  • Truck Wash Side Blasters
  • Exit Side Blowers 30 hp
  • Washable Height Extension (4.1m, 4.8m, 5.1m)
  • Backlit Wash Cycle Display
  • 3 years Spares kit
  • LED Bay Lights
