Multi-Bay Vehicle Wash Equipment

KKE Wash Systems is a global pioneer in car wash technology and automation, offering highly efficient Multi Drop Pump System configurations tailored for high-demand self-serve and multi-bay vehicle wash applications. Designed to optimize energy consumption, operational uptime, and long-term equipment reliability, our multi-bay systems stand as the gold standard for both performance and adaptability in diverse market conditions.

A Multi Drop Pump System is a centralized high-pressure water distribution technology used in self-serve or multi-bay vehicle wash setups. It involves multiple high-pressure pumps arranged in parallel, enabling intelligent load sharing across multiple washing bays. These systems significantly improve energy efficiency, uptime, and redundancy—critical to facilities where multiple users operate simultaneously, such as fleet, truck, or public self-serve wash bays.

The core function is powered through a centralized control system, integrated with pressure sensors and Variable Frequency Drives (VFDs) that detect pressure drops and activate pumps automatically based on user activity in specific bays. This setup ensures on-demand generation of high-pressure water, minimizing wastage and improving pump longevity.

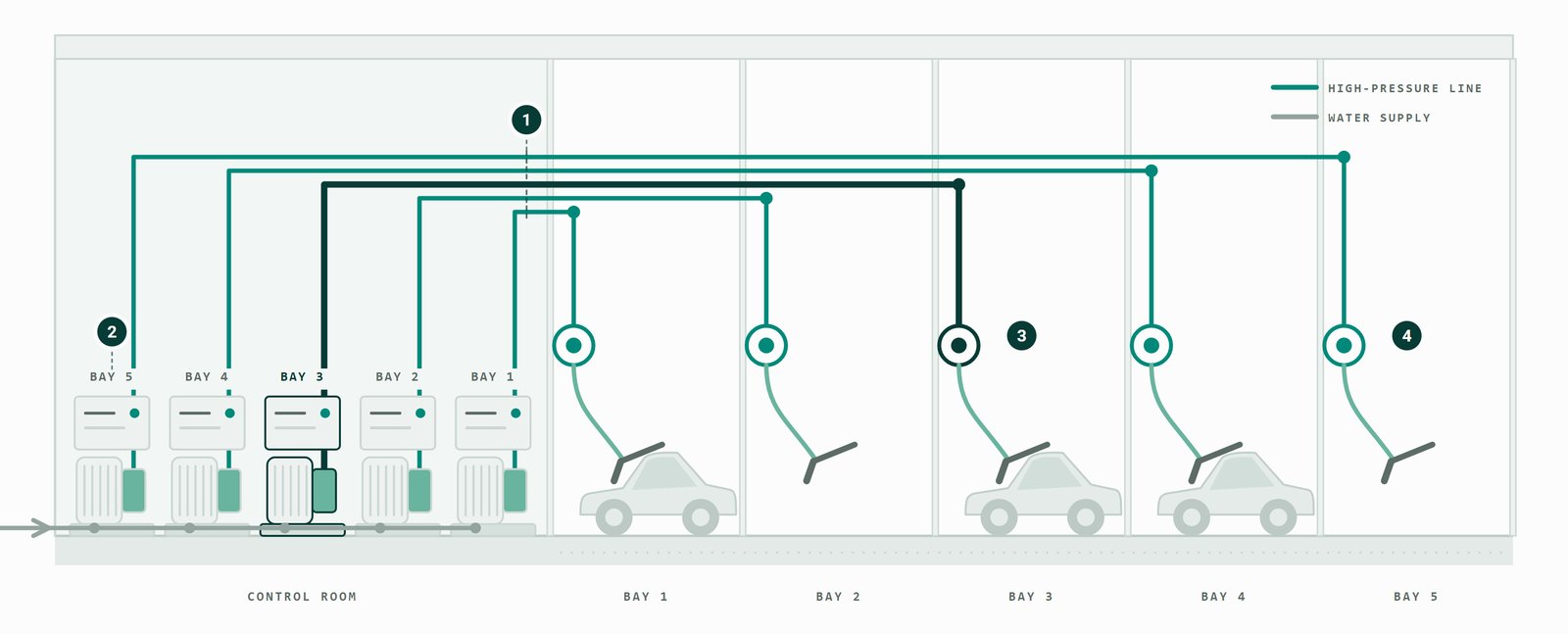

Most multi-bay sites are piped the first way: a pump for every bay, each with its own high-pressure line running the length of the canopy. It works, it is easy to follow, and it is what you will find on the majority of forecourts.

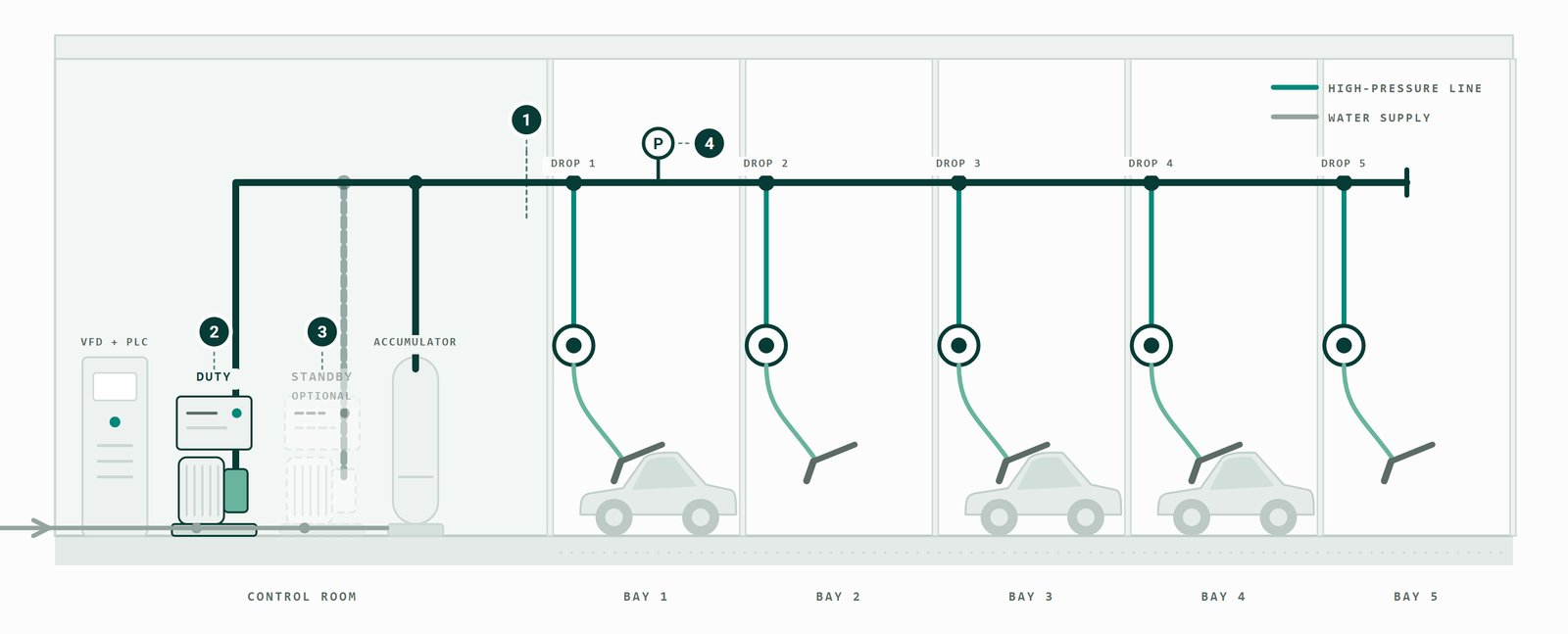

The second way does the same work with one machine. A single duty pump feeds one header, a drop tees off into each bay, and a variable frequency drive trims pump speed to what the guns are actually drawing. Three things make it cheaper to run, and they compound: the pump is sized on what the bays draw together rather than on five full guns, the duty sits in one efficient machine instead of five small ones, and the drive slows the pump down instead of dumping to bypass. The gap widens with every bay you add.

The numbered marks on each drawing key to the notes underneath it.

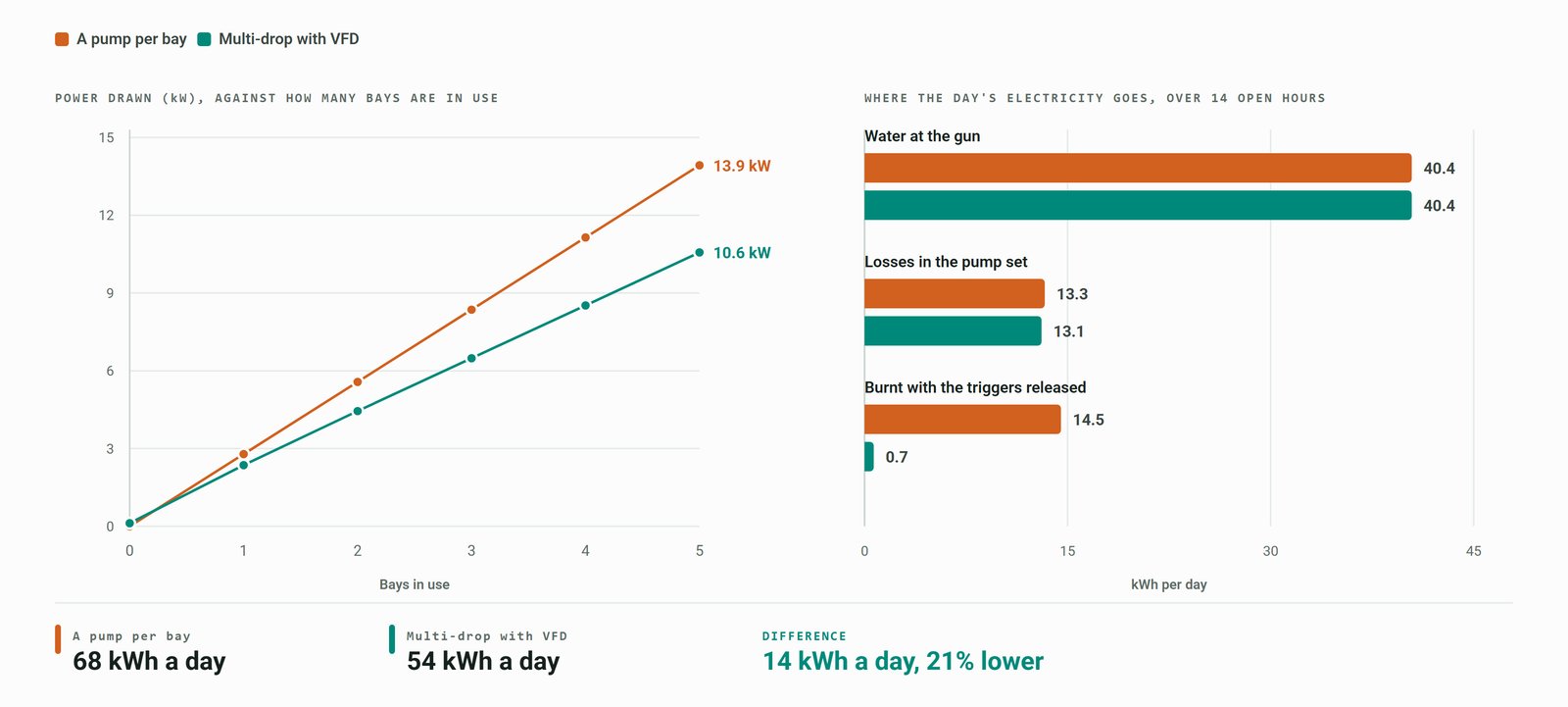

A high-pressure plunger set is not an efficient converter. Measured end to end — from the meter to water at pressure, and across a real wash rather than at a single test point — a small set sized for one gun returns less than half of what it draws. The rest leaves as heat, noise and bypass flow.

Splitting the duty makes that worse rather than better. Every set carries its own motor, bearing, seal and standby losses, so five of them pay those losses five times over; and small motor frames are the least efficient frames there are, well before anything else is counted. Consolidate the same hydraulic work into one machine and the set works above half — the same wash, for less at the meter.

The drive then keeps it there. A pump is at its best between roughly half load and full load; below that it spends more of its power overcoming its own friction than moving water. As bays come and go, the VFD trims speed to hold the single pump inside that band, instead of letting it idle far below its design point or unload into a bypass. That is the whole idea behind the multi-drop system: one machine, kept working where it is good.

For example, in a facility with 10 self-serve bays, if only one bay is active, the system engages just one pump operating at partial capacity. This is far more energy-efficient than running a large single pump at underutilized levels.

Each Multi Drop Pump System developed by KKE includes components engineered for durability, water conservation, and intelligent control:

The inclusion of Variable Frequency Drives (VFDs) is critical for improving energy efficiency and the lifespan of pump motors. By controlling pump motor speed according to real-time demand, VFDs reduce inrush currents at start-up, mitigate heat generation, and minimize electricity costs—even during peak hours.

When integrated with our proprietary PLC-based controls, your Multi Drop Pump System becomes a smart network operating with minimal human intervention.

They are particularly effective in environments with unpredictable wash traffic, ensuring that every activated bay functions at optimum pressure.

Explore our range of Multi Drop Pump System configurations, suited for different site footprints and usage intensity:

Each system is engineered for plug-and-play compatibility and can be customized based on throughput requirements, local water pressure levels, and auxiliary components like reclaim systems or air dryers.

To further enhance your vehicle wash facility’s operational excellence, we recommend pairing your Multi Drop Pump System with the following KKE solutions:

These systems collectively improve water reusability, reduce chemical usage, and ensure larger sustainability goals are met without compromising cleaning efficiency.

Your wash business may have unique needs—our systems can be customized to align with your throughput, space constraints, or regional compliance needs. Whether you require integration with reclaimed water systems or central payment systems, our design team will customize your Multi Drop Pump System from the engineering stage itself.

Talk to us today to create a future-proof design for your wash facility that embraces energy efficiency, operational flexibility, and long-term durability.

A Multi Drop System offers excellent return on investment, especially over high-use periods. The modularity of multi-pump systems allows easy scaling as your customer base grows. Our systems also decrease downtime due to system redundancy, improving throughput and fluidity at peak hours—a major revenue enabler for operators.

From flagging pressure faults to logging pump hour cycles, KKE Wash Systems’ control platforms allow predictive maintenance and diagnostics remotely, saving unplanned shutdowns and repair costs in the long run.

Explore our extended lineup of Self Serve Bay Equipment and accessories to build the most efficient wash operation in Peru.

To discover how a fully integrated Multi Drop Pump System can revolutionize your cleaning operations, speak with our engineering team today.
